Ethylene glycol, a popular industrial chemical used in the manufacture of polyester fibers and in industrial applications like antifreeze, has the structure shown below:

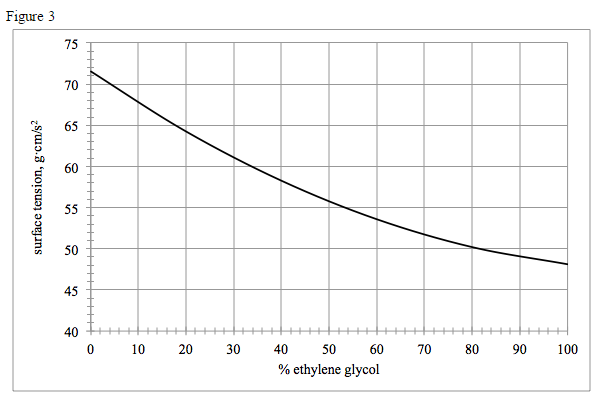

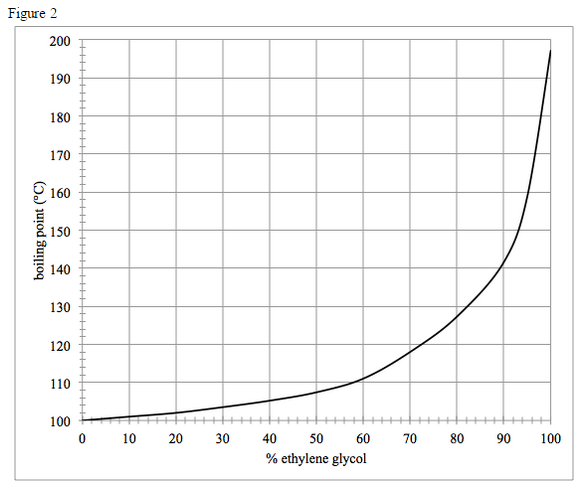

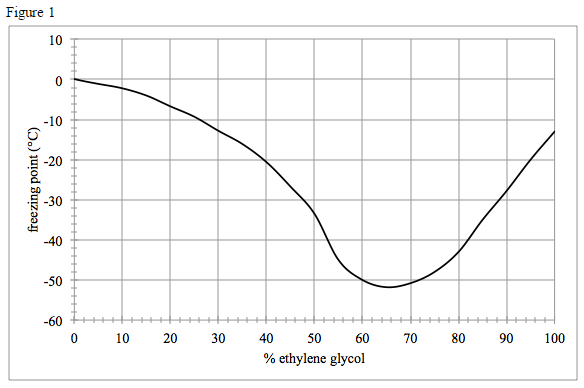

Figures 1-3 each show how a property of solutions of ethylene glycol in H2O varies as the concentration of ethylene glycol increases at 1 atmosphere (atm) of pressure. Concentration is given as the percent ethylene glycol by mass in H2O. Figure 1 shows how the freezing point varies with % ethylene glycol. Figure 2 shows how the boiling point varies with % ethylene glycol. The surface tension is the property of the surface of a liquid that allows it to resist an external force due to the cohesive forces between molecules in the liquid. Figure 3 shows how surface tension varies with % ethylene glycol at 25°C.

Passage data adapted from http://www.meglobal.biz/media/product_guides/MEGlobal_MEG.pdf

Choose the option that best answers the question.

According to Figures 2 and 3, at 1 atm, an aqueous solution of ethylene glycol that has a boiling point of 130°C will have a surface tension closest to which of the following at 25°C?
